Opto-electrical Design


Customized Platforms for Opto-Electrical Development Needs

OptiConcepts specializes in the design and construction of specialty optical test platforms to accurately simulate your optical system or situation.  These precision systems are used to develop and evaluate electronics and optoelectronics while providing a stable, reliable reference to evaluate equipment performance. In addition, a better understanding of your system will help you make the most informed decisions regarding network development.

Your Network, Our Passion
At OptiConcepts, we work directly with your engineers to create an optical test platform that meets your exact requirements. Precise spans of optical fiber are used to achieve a given length, delay, or loss and are mounted in a portable or stationary fixture.  Optical switches, couplers, splitters, filters, and simulated events (such as fusion splices, connectors, macrobends, etc.) are added to route and condition optical signals to achieve the desired effect.  Customized interfaces can be integrated to control the system accordingly.

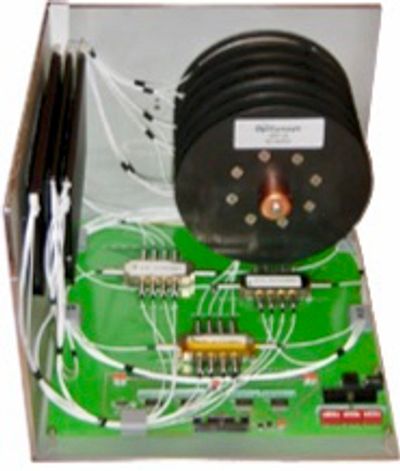

An Entire System in a Box
We take pride in our ability to design and create test fixtures that are both neat in appearance and optimize space in order to provide the smallest product possible.  In fact, we can install over half a million meters of optical fiber (that’s well over 300 miles) in an assembly that will fit into a standard seven foot equipment rack.

From OptiConcepts To You
Before we ship your system, we thoroughly review the final product and rigorously test against your requirements as well as our own stringent standards.  Upon receipt of your order, you will find an array of documentation and test results to ensure your system will serve you well.  At OptiConcepts, our utmost desire is to provide you with the best quality products and services available.

Top Applications
• Design of Opto-electrical devices
• Network System Simulation of Loss, Length, and Time Delay
• Equipment Calibration
• Product Demonstrations
• Custom Training Aid
• Research and Development Reference Fiber

Feature Highlights
• Heavy-duty Aluminum or Steel Frames for Optimum Rigidity
• Easy to Move from Location to Location
• Variety of Fiber Lengths and Connector Types Available
• Highly Customized for OEM Applications
• Easy Access to Optical Components

Refer to Optical Test Bed spec sheet for more information.
